Cabin
- External Size (Wall Log Length) : 2300 mm (W) x 3800 mm (D)
- Internal Size (approx.) : 3612 mm x 2112 mm
- Usable Floor Area: 7.6m²
- Ridge Height : 2450 mm
- Canopy : 100 mm
- Roof Pitch : 15°
Included in Your Log Cabin Kit :
The following items are included with your log cabin kit:
- Pre-cut Floor Bearers - Treated 70mm x 50mm
- Kiln dried wall logs (untreated).
- Cylinder lock with two keys.

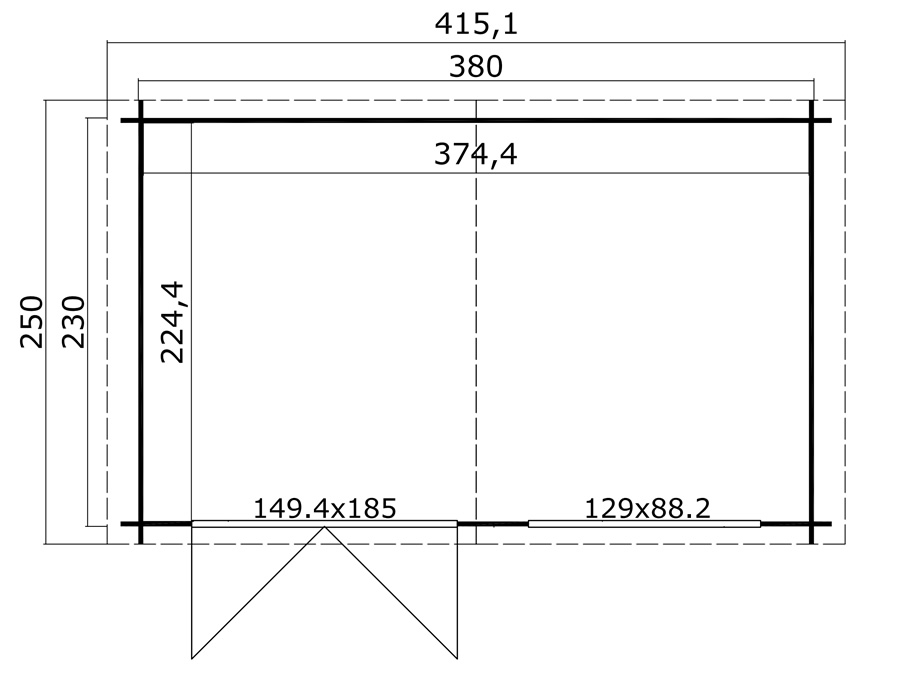

- Doors and windows as indicated on the floor plan.
- Floor Boards - 19mm Tongue and Groove.
- Roof Boards - 19mm Tongue and Groove.
- Fixing Kit
- Assembly Guide.
Items not Included
- Weather proof covering, such as shed felt.
- Timber Treatment
EPDM Kit
The EPDM Kit provisions all you need to apply EPDM to your roof including a one piece rubber sheet and glues.
Benefits of EPDM for rubber roofing
- Totally inert and UV stable
- Will not crack or perish
- Environmentally friendly
- Cold applied
- Can be used on a flat roof
- Virtually maintenance free
20 Year Guarantee - Life Expectancy of 50 Years
- Firestone E.P.D.M is a high performing synthetic rubber membrane offering a unique combination of features and benefits.
- Quick and Easy Installation - Available in large sheet sizes anything up to 12.5m x 30m, resulting in fewer field seams and less installation time.
- Superior Weatherability and Durability - Due to its composition, essentially EPDM polymers and carbon black, Firestone EPDM offers unmatched resistance to ozone, UV radiation, and ultimately ageing. Life expectancy of 50+ years !
- High Flexibility and Elongation - Firestone EPDM remains flexible at temperatures down to -45 degrees and can elongate over 300% to accommodate building movements and temperature fluctuations.
- Low Life-cycle Cost - Firestone EPDM requires little or no maintenance. This feature combined with the inherent durability and competitive installed cost of EPDM roofing systems, result in a very low life-cycle cost.
- Environmentally Friendly - Firestone EPDM is an inert material with limited environmental impact during manufacture and use of the product.
Felt Shingles
Selecting this option will provision enough felt shingles to cover the roof with some to spare if laid correctly.
Felt shingles are available in four colours - Green / Grey / Red / Black.
Bourne Green
Bourne Grey
Bourne Red
Bourne Black
Standard packs have 17 pieces at 1000mm x 330mm.
If available, ridge and starter row tiles are 1000mm x 250mm and each pack contains 20 pieces covering up to 20 linear metres to line the roof edge or 12 linear metres of overlapped ridge. Note : Not all colours are available as Ridge and Starter tiles, in which case enough standard shingles will be supplied to use for this purpose.
Felt shingles require a minimum 11 degree roof pitch. It is advised to use an underlay for all pitches between 8 and 11 degrees. It is not advised to use felt shingles on a ptich less than 8 degrees.
Construction
- Base - glass-fibre felt
- Improved bitumen modified with SBS polymers
- Basalt sprinkle
- Adhesive, frost-resistant polymeric bitumen bulk

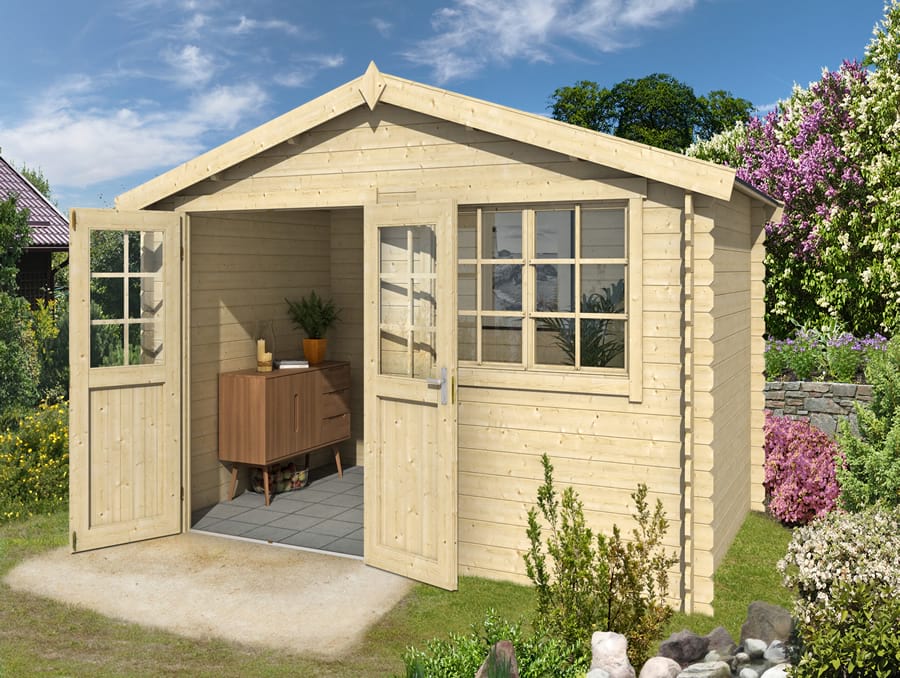

Axel 230 Log Cabin
Price range: £2,290.00 through £2,722.00
Description
Although one of our more basic models, the Axel 230 Log Cabin will not let you down Constructed from 28mm wall logs with single glazed glass in the window and door it will provide you with a sound garden building in which to occupy.
If you’re looking for a roomy cabin that won’t break the bank or take up too much real estate, then the Axel 230 Log Cabin coud be just what you’re looking for.
Additional information
| Dimensions | 2300 × 3800 × 2450 mm |
|---|---|
| Log Size | |
| Glazing Type | |
| Roof Style | |
| Brand |
Note :
- All images and other forms of illustration are to demonstrate a product and support the product text only.
- Accessories, timber treatments etc where shown are not included unless expressly stated in the product text.
- Dimensions may vary slightly from those stated.
