Cabin :

• External Size (Wall Log Length) : 4250 mm (W) x 3000 mm (D)
• Internal Size (approx.) : 4206 mm x 2956 mm Assuming a 44mm wall
• Usable Floor Area : 12.43m²
• Ridge Height : 2450 mm
• Wall Height : 2050 mm
• Roof Pitch : 15°

Included in Your Log Cabin Kit :

• Treated floor bearers
• Kiln-dried wall logs (untreated)
• Cylinder door lock with 2 keys

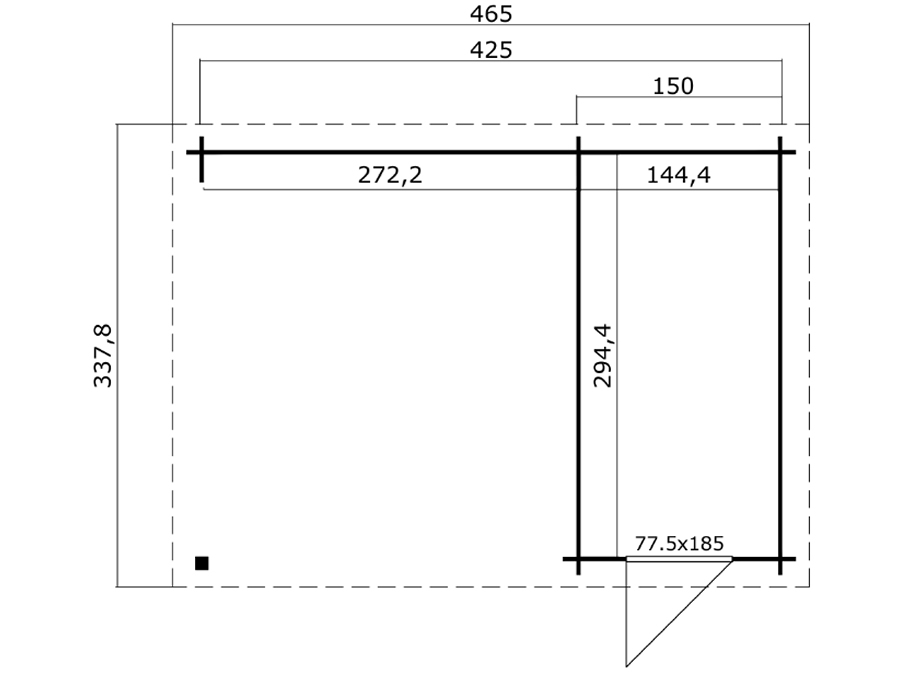

• Doors and windows as indicated on the floor plan.
• Floor Boards - 19mm Tongue and Groove.
• Roof Boards - 19mm Tongue and Groove.
• Assembly Guide.

Items not Included

The following items are NOT included in the kit, but are required for installation

• Screws: We would recommend 100mm x 5mm (for the base bearers) and 40mm x 4 mm stainless steel screws (for the doors and window frames).
• Nails to apply the roof and floor boards. We would recommend a 2.65 x 50mm wire nail
• Weather proof covering, such as felt shingles, shed felt or EPDM.
• Timber treatment for weather protection

Building Components
