Product Overview
The name is a multi room cabin and flexible in it's internal layout. Although we have a standard design showcased here, should you require alteration, do get in touch with your design so that we can confirm structural integrity and to provide you with a quote including revised drawings.
Should you be looking for a better insulated version, take a look at the Tignes DS which boards a double skin construction.
Cabin :
- External Size (Wall Log Length) : 11000 mm (W) x 6000 mm (D)
- Internal Size (approx.) : 10956 mm x 5956 mm Assuming a 44mm wall
- Usable Floor Area : 65.25m²
- Ridge Height : 2900 mm
- Wall Height : 2160 mm
- Roof Pitch : 5°
Included in Your Log Cabin Kit :
- Treated floor bearers
- Kiln-dried wall logs (untreated)
- Cylinder door lock with 2 keys

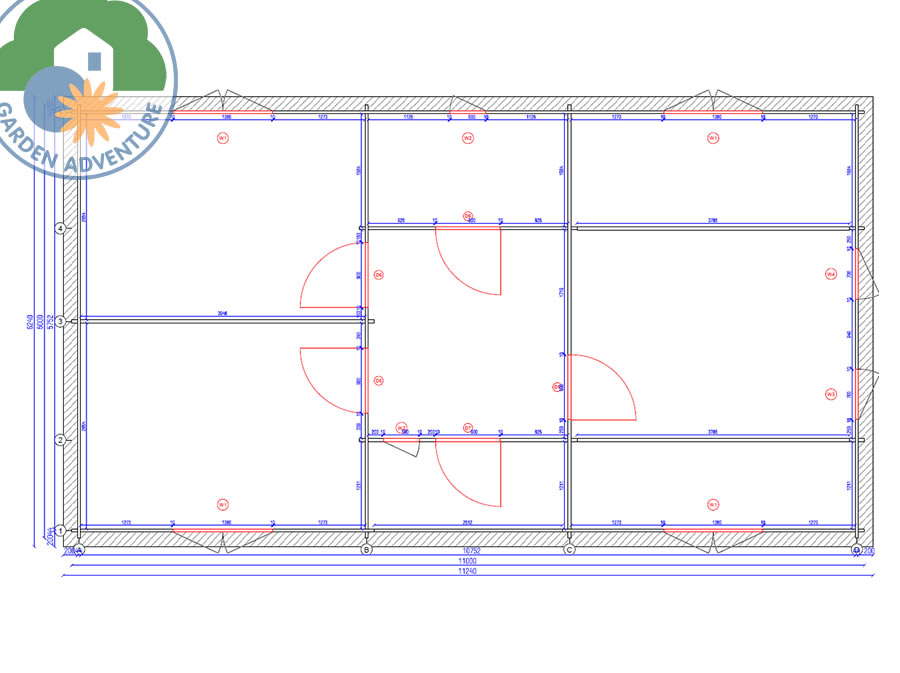

- Doors and windows as indicated on the floor plan.
- Floor Boards - 19mm Tongue and Groove.
- Roof Boards - 19mm Tongue and Groove.
- Assembly Guide.
Items not Included
The following items are NOT included in the kit, but are required for installation
- Screws: We would recommend 100mm x 5mm (for the base bearers) and 40mm x 4 mm stainless steel screws (for the doors and window frames).
- Nails to apply the roof and floor boards. We would recommend a 2.65 x 50mm wire nail
- Weather proof covering, such as felt shingles, shed felt or EPDM.
- Timber treatment for weather protection
Building Components
Doors
- 1x Single Half Glazed
Windows
- 4x Double Window
- 3x Single Window
Tignes Log Cabin
From : £20,779.00
