Product Overview
The versatile name can be found throughout the UK and in use to supply short term accommodation, club house and many more challenges to provide a useful building.
Available in 44 and 68mm as standard, but can be produced in log thicknesses up to 160mm. These larger section wall logs are produced in laminated logs. These are glue laminated strips that result in a very stable, strong length of timber.
Combine these wall log options with the various glazing specifications and you can create a building to suit.
Don't forget, the internal wall layout is not cast in stone (or wood!) If you need to adjust internal walls and doors, get in touch and we can provide a custom quote within 24hrs !
Cabin :
- External Size (Wall Log Length) : 5000 mm (W) x 10000 mm (D)
- Internal Size (approx.) : 9999 mm x 9999 mm (using 34mm wall)
- Usable Floor Area : 49.34m²
- Ridge Height : 2500 mm
- Wall Height : 2160 mm
- Roof Pitch : 8°
Included in Your Log Cabin Kit :
- Treated floor bearers
- Kiln-dried wall logs (untreated)
- Cylinder door lock with 2 keys

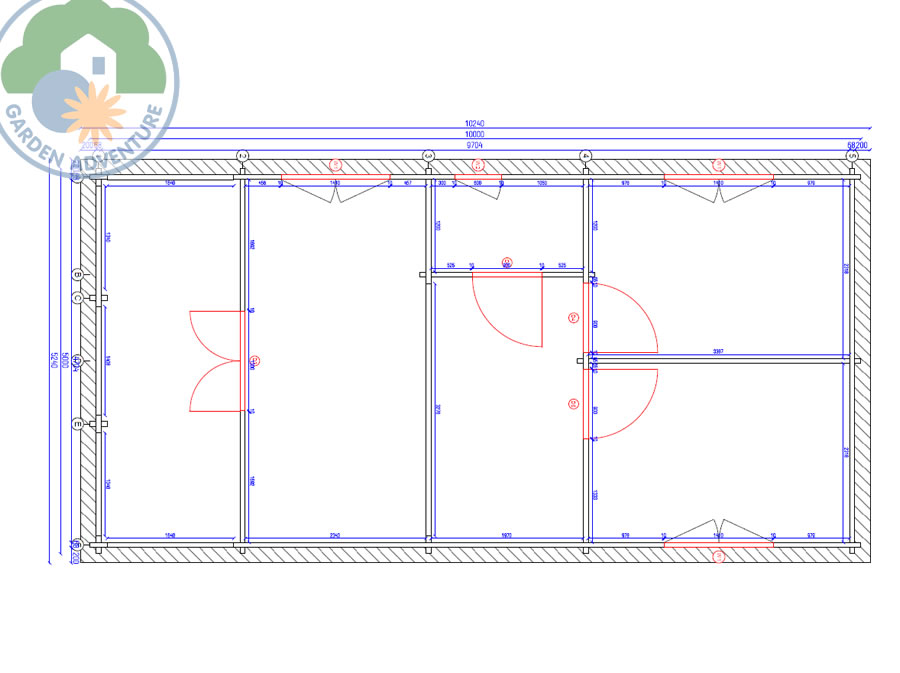

- Doors and windows as indicated on the floor plan.
- Floor Boards - 19mm Tongue and Groove.
- Roof Boards - 19mm Tongue and Groove.
- Assembly Guide.
Items not Included
The following items are NOT included in the kit, but are required for installation
- Screws: We would recommend 100mm x 5mm (for the base bearers) and 40mm x 4 mm stainless steel screws (for the doors and window frames).
- Nails to apply the roof and floor boards. We would recommend a 2.65 x 50mm wire nail
- Weather proof covering, such as felt shingles, shed felt or EPDM.
- Timber treatment for weather protection
Building Components
Doors
- 1x Double Fully Glazed (DFG) (Primary)
Windows
- 3x Double Window (Double)
- 1x Single
