Wales 5x4 Log Cabin

Our Price - £2,490.00

Cabin Features :

  • Timber - All our cabins are manufactured from either Spruce or Russian Redwood, your cabin may be machined from either depending on what is available to the mill at point of production. If you have a preference, please advise. Note : There maybe a delay in delivery if this is requested whilst we wait for the preferred timber to come through the production line.
  • 34mm (1¼″) Solid Wall Boards More Info

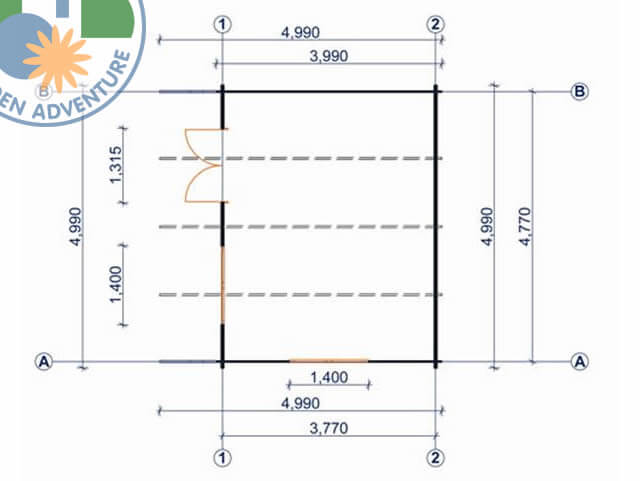

  • Doors and windows (as per floor plan) More Info
    • Windows - 2 Opening Double Windows
    • Door Style - Double Doors Fully Glazed
    • If the door is off set to one side of its containing wall (not central), then the position of doors and windows in this wall and the position of the window in the side wall (if applicable) can be reversed. You can choose these positions at point of installation
  • Single glazed with Glass More Info
  • Floor Boards - 20mm Tongue and Groove More Info
  • Roof Boards - 20mm Tongue and Groove More Info
  • Door lock - cylinder type. Supplied with three keys More Info

Log Specification

  • Log Thickness - 34mm (1¼″)
  • Width : 5000mm (16′ 5″)
  • Depth : 4000mm (13′ 1″)

Approximate Internal Dimensions

  • Width - 4772mm (15′ 8″)
  • Depth - 3772mm (12′ 5″)
  • Area - 18m² (194ft²)

Floor and Roof Boards

  • Floor boards - 20mm tongue and groove
  • Roof boards - 20mm tongue and groove

Doors and Windows

  • Double Doors Fully Glazed - 1295x1860 (4′ 3″ x 6′ 1″)
  • Double Windows - 1380x910mm (4′ 6″ x 3′)
  • Single glazed with glass

Other Dimensions

  • Wall height - 2000mm (6′ 7″)
  • Ridge height : 2700mm (8′ 10″)
  • Floor Bearers: Treated 50x50mm (2"x2")
  • Minimum Base Size 4840mm x 3840mm (15′ 11″ x 12′ 7″)

Note: All cabins 5.0 or less wide can be manufactured with a ridge height of 2.5m which allows it to be constructed without planning permission as close as 500mm to your boundary.

See our guide to planning permission here.

If you require this cabin to be manufactured with a maximum height of 2.5m, please advise at point of purchase.

Your Cabin Kit Will Include :

  • Floor Bearers - Treated 50x50mm (2"x2")
  • Computer machined wall boards from kiln dried stock. Untreated. More Info
  • Floor Boards - 20mm Tongue and Groove More Info
  • Roof Boards - 20mm Tongue and Groove More Info
  • Single glazed with Glass More Info
  • Door lock - cylinder type. Supplied with three keys More Info
  • Internal Trims (tidies up the join between roof boards and walls) More Info
  • Fixing kit - all the screws and nails required to install your cabin More Info
  • Assembly Guide More Info
Download Assembly Instructions Here

Cabin Options :

Felt Shingles, 7 Colour and Style Options : £309.00

Veranda

Veranda

The veranda is 1400mm (4′ 7″) deep and 5000mm (16′ 5″) wide.

More Info

Plain Glass to Doors and Windows

Plain glass option

We can supply the doors and windows of this cabin in plain glass rather than the Georgian bars as seen in the pictures, there will be an additional charge of £220.00 for this option.

In order to protect the glazing, all the doors and windows need to be packed onto a separate pallet to minimise the risk of damage during carriage.

More Info

Extra Doors and Windows

Extra Doors and Windows

We can supply additional doors and windows for your cabin.

More Info

Professional Installation - Prices from £580.00

External Treatment

Superior quality water based, ultra tough, long life, UV resistant, weatherproof coating for use on all exterior timber directly or indirectly exposed to harsh weather and strong sunlight.

Armadek forms a tough wear resistant coating on the surface of the timber and is designed to protect wooden decks, but can be used on any exterior timber.

Armadek is quick drying, low in odour and easy to apply by either brush, roller or spray.

This 5000x4000 cabin is estimated to require 10 litres of application.

10 litres will provide sufficient treatment to make three coats as per the manufacturers instructions resulting in an expected life span of up to 8 years before further treatment is necessary.

Rystix Exterior Armadek Cabin Treatment

More Info

Installed Wales 5x4 Log Cabins

Sorry, no gallery pictures currently available


Other Wales Cabin Sizes


Customer Star Rating

Based on 2 Reviews

This cabin scores 4.50/5.00

During the check out process (see this on a short video here) you have the choice of paying the full amount or a deposit to secure the order. The deposit required is 30% of the total order fee. Should you choose the deposit option, we will contact you when your cabin is due for delivery to take the balance payment. We accept Mastercard, Visa and bank transfers as a means of payment.
Delivery charges will depend on your location. Click here to see how much log cabin delivery will cost
Watch this short animated video of how the cabin is installed - it really is as easy as this ........
Take a look at some of the questions we get asked regularly and our professional response
Watch our short video on the process for purchasing one of our cabins
said - "Although a little later than expected, the delivery driver made up for the delay by working hard to off load his lorry safely and in a timely manner. Overall am very pleased with eh my new cabin"
Rating : 4 / 5
Review Date - 12 February 2013

A few good reasons to consider making your purchase through Garden Adventure

Eurovudas

Product ID - 255

£2490
